Industrial Stainless Steel 316 Food Vibro Sifter Corrosion Resistance Round Vibrating Sieve

• Overview
• Product Description
• Features
• Product Parameters
• Product Show
• Application
• Packaging & Shipping
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	KP400/KP600/KP800/KP1000/KP1200/KP1500
Transmission Structure	Vibrating Screen
Usage	Screening/Sieving/Filtering/Separating
Works	Vibrating Motor
Object	Food/Chemical/Mine
Shaft Number	No
Running Track	Circular Vibrating Screen
Supporting Device	Coil Spring
Warranty	1 Year
Customized	Customized
Condition	New
After-sales Service	Provide
Diameter	400mm/600mm/800mm/1000mm/1200mm/1500mm
Layer(S)	1-4 Layers
Mesh Size	2-500mesh
Cleaning System	Bouncing Ball/Ultrasonic Cleaning System
Capacity	10kg-10tons/Hour
Material	Stainless Steel 304/316L/Carbon Steel
Voltage	380V, or Customized
Transport Package	Standard Export Wooden Box
Specification	400-1500mm
Trademark	KARP
Origin	Xinxiang City, Henan Province, China
HS Code	8479820090
Production Capacity	200 Set/Sets Per Month

Packaging & Delivery

Package Size100.00cm * 100.00cm * 100.00cm Package Gross Weight200.000kg

Product Description

Working principle:
Industrial Stainless Steel 316 Food Vibro Sifter Corrosion Resistance Round Vibrating Sieve is a new type and high precision fine powder sieving machine with characteristics of high efficiency & lower noise. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface to achieve the purpose of classification, filtering and removal of impurities.

Features of vibrating screen sieve:

PTFE sprayed inner the vibro sieve, suitable for lithium battery materials Vibrating sieve machine with iron remover

Related products:

Packing for Industrial Stainless Steel 316 Food Vibro Sifter Corrosion Resistance Round Vibrating Sieve:

Product Description

Industrial Stainless Steel 316 Food Vibro Sifter Corrosion Resistance Round Vibrating Sieve

Features

01

Quick Clamps

* The quick clamps are designed to make the process of changing screens or cleaning the machine as quick and effortless as possible. * Reduce the downtime.

02

Buffer board & Viewing hole

* The buffer board makes the materials flow into the screen surface evenly. * Check the materials through the viewing port.

03

Discharge outlets

* Outlets can be rotated 360 degrees as your required. * The size and shape can be customized as your required.

04

Discharge valve

* Control the rate of material discharge and the amount by adjusting the valve manually. * Ensure optimal screening performance and accurate particle size distribution.

05

Fine weld treatment

* Our machine is built to the highest standards of quality, with a focus on fine weld treatment. * This attention to detail ensures that the machine is not only strong and durable but also visually appealing.

1. Suitable not only for dry materials but also for wet materials.
2. Particles as fine as 500 mesh can be screened at high production rates. 3. As many as 4 screen decks can be incorporated in one machine, separation into 5 fractions. 4. Its fast screen change reduces downtime and maintenance time. 5. No special flooring or foundation is needed and less volume. 5. Full enclosed structure, easy to operate, less power consumption.

1 deck to 4 decks are available, it can be made of stainless steel 304/316 or carbon steel. We also offer a fully customizable rotary vibrating sieve, like inlet and outlet options, to fit your processing line.

Contact us, to get an accurate solution for Industrial Stainless Steel 316 Food Vibro Sifter Corrosion Resistance Round Vibrating Sieve.

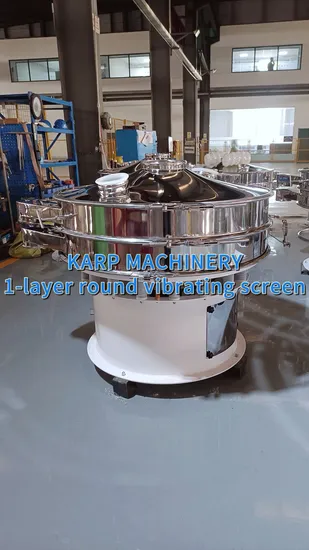

Product show:1 deck round vibrating sieve for powder sieving

Product Parameters

Model	Diameter(mm)	Largest particle(mm)	Screen mesh	Layer	Power(KW)
KP400	400	<10	2-500	1-4	0.22
KP600	600	<10			0.55
KP800	800	<20			0.75
KP1000	1000	<20			1.1
KP1200	1200	<20			1.5
KP1500	1500	<20			2.2

Product Show

Product flow:

Stainless steel Round vibration screen sieve, surface treatment: mirror polishing

Stainless steel round vibrating screening sifter
Special design:

High frequency vibrating screen for liquid filtering Vibrating Screen Sifer for 3D printing powder

Application

Industrial Stainless Steel 316 Food Vibro Sifter Corrosion Resistance Round Vibrating Sieve is widely used in many industries, it's suitable for powder pellets liquid sieving filtering grading removing impurities,for example as below:

1. Chemical industry: resin, paint, industrial powder, cosmetics, herbal powder, plastic, PVC powder, etc.

2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, egg powder, soy sauce, juice, coffee bean, etc.

3. Metals and metallurgical mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.

4. 3D Printing materials: titanium alloy powder, aluminium alloy powder, stainless steel powder, iron base alloy, nickel base alloy, titanium powder, copper powder, aluminum powder, molybdenum powder.

5. Lithium battery industry: battery cathode material, battery anode materials, artificial graphite, natural graphite, lithium iron phosphate, battery material powder, etc.

6. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon, etc.

Customer case:

Packaging & Shipping

Outside package: standard export wood box.

Inner package: stretch film for machine, accessories in carton. Optional shipping type: Support Express · Sea freight · Land freight · Air freight

Xinxiang Karp Machinery Equipment CO.,Ltd is one of the leading manufacturers of vibrating screen sifter, conveying machines, feeding machines, elevating machines and related products with 11-year designing and manufacturing experiences.

Warmly welcome friends from all over the worlds to our company, we look forward to sincere cooperation and mutually beneficial development with you.

Our equipment has been widely praised:

Company Profile

We are committed to solve all screening and conveying problems of bulk materials. Depending on the quality as the life of enterprise, we have won our customers' identity with professional solution, high quality products, perfect service. Our main products are round vibrating screen (like Industrial Stainless Steel 316 Food Vibro Sifter Corrosion Resistance Round Vibrating Sieve), tumbler screen, rectangular vibration sieve, square gyratory sifter, drum screen, standard laboratory test sieve shaker, screw conveyor, belt conveyor, vacuum conveyor, bag unloader, vibration table, vibrating feeder, bucket elevator, vibration elevator, feeding machine and related parts. All of our products are widely used in food, additive, lithium battery industry, chemical, metallurgy, building materials, mining, environmental protection and other fields. Warmly welcome friends from all over the worlds to our company, we look forward to sincere cooperation and mutually beneficial development with you.

Our CE certificate:
Customer visit:

FAQ

The proper selection of the Industrial Stainless Steel 316 Food Vibro Sifter Corrosion Resistance Round Vibrating Sieve depends on the raw material, mesh size, required output, method of input, abrasiveness of the material, etc: 1. Material:_____, specific gravity/bulk density:_____ 2. Moisture:_____% 3. Capacity:________kg/ hour 4. Screen layer:_______ 5. Screen mesh size:______ mesh, ______ mesh, ______ mesh 6. Voltage:______V, Frequency:______HZ, 3 phase 7. SS304/316L stainless steel or carbon steel? Q: How long for the manufacturing time? A: 10-15 working days. Q: How long for warranty time? A: 13 months from the shipping date. Q: Can your engineer come to the construction site to guide the installation? A: Yes, we can arrange our engineer to guide your installation. Q: How can we guarantee the quality? A: We provide a set of the sealing parts and installation tools of vibrating screen with our machine for free. And one year warranty period. Q: What can you buy from us? A: We provide one stop solution for powder materials: screening, conveying, weighing, mixing, packing and dumping.
