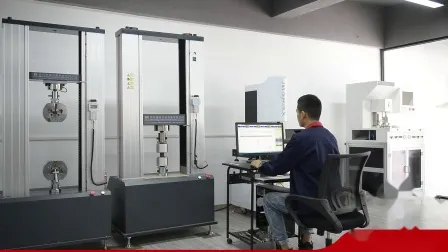

Lab Equipment Tensile Testing Machine / Tensile Deformation Testing Equipment

Lab Equipment Tensile Testing Machine / Tensile Deformation Testing Equipment

1. Qiantong main scope of testing machineElectronic universal material testing machine, Horizontal tension testing machi
Basic Info.
Model NO. QT-6100 Series
Accuracy Grade 0.5
Load Way Electronic Load
Loading Method Dynamic Load
Display PC Computer
Control Computer Control
Weight 500-1000Kg
Power Source AC380V
Oil Cylinder Position Electronic
Motor Servo Motor
Transport Package Wooden Case
Specification 1050*600*2010mm
Trademark SUZHOU QIANTONG
Origin Jiangsu, China
HS Code 9024800000
Production Capacity 1000 Set/Year
Product Description
1. Qiantong main scope of testing machineElectronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)2. Product Brief: It adopts full digital power, displacement and speed three closed loop control, using AC motor and control drive system, with Taiwan precision worm gear reducer and Taiwan TBI precision screw drive to achieve the transmission efficiency and signal-to-noise ratio of the best effect.
Function: Tester is used to test physical properties of elongation, compression, peeling, tearing bending, 3-point bending, shearing of metallic and non-metallic material and so on.
Meeting standards: It can be customized to meet GB, ISO, JIS, ASTM, DIN requirement and the standard provided by client to test and data processing.
Application ranges: This machine is commonly applied in material analysis in auto-parts, fastener, aerospace, cable and wire, plastic and rubber, paper packing industries. 3. Features of control and data processing system 1) With advanced chipping technology and professionally designed data gathering and amplifying system,the tester is highly integrated,reliable and convenient. Control software automatically derives data of tensile strength, yield strength, fracture strength, modulus of elasticity, elongation.The open formula edition function allows automatic calculation of force, tension displacement deformation at any designated point. The standard in the process of control and data processing meet national requirement for testing metallic material and non-metallic material. 2) Control method: fixed speed, fixed displacement, fixed loading, fixed load increasing rate,fixed tension, fixed tension increase rate. 3) Automatically resetting: After the test begins, measuring system automatically reset to zero.4) Automatic shifting: automatically changes range when load changes to make sure precise collection of data.5) Automatic saving: testing data and testing condition are automatically stored to avoid data loss caused by forgetting saving.6) Batch testing: For specimen with same setting, batch test can be performed after setting the test sequence.7) Display mode: data and curve are presented while testing.8) Curve display: after testing, it is possible to revisit the curve to analyze. Move your mouse on the curve to find relative data at each point.9) Curves: parameters: stress-strain, force-displacement, force-time, displacement-time results are displayed and printable. 10) Parameters: force parameters(g,kg,N,lb) stress parameters(kg/mm2,N/mm2,Mpa,lbf/in2)
Displacement parameters (m,mm,in)11) Test report: test reports are edited and printed according to the desired format by client and can be output as Excel files12) Safety protection : safety mechanism is triggered when overloading is above 2~10%13) The tester is able to automatically test and calculate mechanic property of specimen. It is also possible to intervene manually in the analyzing process. Automatic analyzing test results are revised according to relevant standard to improve data accuracy.4. Specifications
TypeQT-6100SQT-6100WQT-6100SQT-6100W
Load capacity5T5T10T10T
Precision level0.50.50.50.5
Test force resolution 1/±5000001/±3000001/±5000001/±300000
displacement resolution 0.0005mm0.0005mm0.0005mm0.0005mm
Speed (mm/min)0.005-50010-3000.005-35010-300
MotorServo motor(upgrade)Servo motorServo motor(upgrade)Servo motor
Control methodFully closed loopSemi closed loopFully closed loopSemi closed loop
Display methodPC softwarePC softwarePC softwarePC software
Recovering speed (mm/min)300100300100
Measurement range2%-100%FS2%-100%FS2%-100%FS2%-100%FS
Relative deviation±0.5% within indication±0.5% within indication±0.5% within indication±0.5% within indication
Maximum stretch stroke1100mm1100mm1100mm1100mm
Effective stretching space680mm680mm680mm680mm
Effective testing width420*420mm420*420mm420*420mm420*420mm
Dimension1050*600*2010mm1050*600*2010mm1050*600*2030mm1050*600*2030mm
Power 220V 50Hz 1.5kW220V 50Hz 2kW380V 50Hz 2kW220V 50Hz 2.6kW
Weight 600kg600kg650kg850kg

Lab Equipment Tensile Testing Machine / Tensile Deformation Testing Equipment

Lab Equipment Tensile Testing Machine / Tensile Deformation Testing Equipment

Lab Equipment Tensile Testing Machine / Tensile Deformation Testing Equipment

Lab Equipment Tensile Testing Machine / Tensile Deformation Testing Equipment


Lab Equipment Tensile Testing Machine / Tensile Deformation Testing Equipment




Some cooperative brands(This ranking is in no order)


FAQ
Q:Are you a trade company or factory?
A:Our company is a factory and directly sales.
Q:Can your company accept customization?
A: Yes. Our machines can be customized by client.
Q:How to guarantee your after-sales service?
A:Our philosophy is one year warranty and lifetime service. After the warranty period is exceeded, if there is any problem, we will provide support for you in time. (only charge travel expense and parts cost at most.)
Q:What is the different between Type-S and Type-W?
A:Type-S can test multistep experiment, hold loading,bending, yield strength, modulus of elasticity with import upgrade servo, but the Type-W can not do these tests.
Q:May the customer not use your company's computer?
A:Sure. But please tell us what type your computer is. We need to confirm your computer can install the software. And we can subtract the price of computer from offer
Q:How to install and operate?
A:We will give a U disk with operating video. About the installing, just plug in and use.
Q:Do you have other testers?
A:Sure. If there is no machines which can make you satisfied. We can give you the catalogue of complete products by email.
