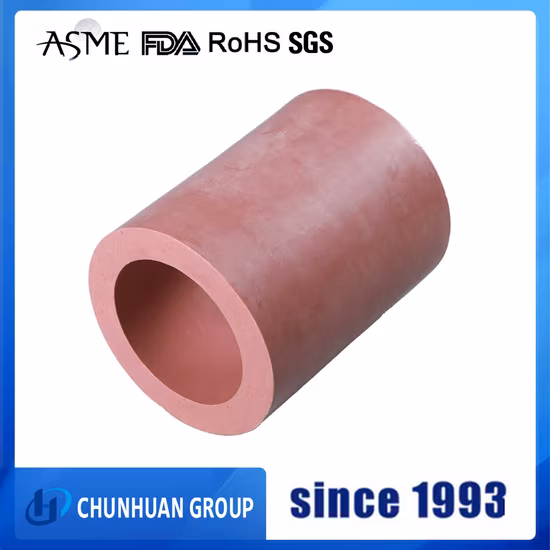

24MPa Plastic PTFE Tube Filled with Various Types and Amounts of Carbon

Overview

Basic Info.

Melting Point	330ºC
Working Temp.	-180~260ºC
Fire Resistance	V-0
Bittle Point Temperature	-268ºC
Produce Max.Temp.	390ºC
Elongtion at Break	200-350%
Density	2.1--2.3G/M3
Compresion Strength	24MPa
Dielectric Constant	2.1
Dielectric Strength	>1400
Transport Package	Standard Export Packing
Specification	30-310mm
Trademark	CHUNHUAN
Origin	China
HS Code	39209910
Production Capacity	50tons/Month

Product Description

We can supply PTFE products filled with various other materials, such as bronze, carbon, glass fiber, and so on.Product Features

1.Low temperature and high temperature resistance (-190 °C- +250 °C)
2.corrosion resistance , weather resistance\3.high lubricity, no adhesion
4.non-toxic,
5.non-flammable
6.acid and alkali resistance (except molten alkali metals)
7.antioxidant.

Filled MaterialGlass Fiber: Increases compressive strength, rigidity and wear.Reduces creep and cold flow, Minimal effect on chemical and electrical properties‚Carbon: Increases compressive strength, hardness, wear, and load properties. Good chemical resistance, Various types and amounts of carbon can be added to alter conductivityƒGraphite: Reduces coefficient of friction, Reduces initial wear, Increases strength, MolybdenumDisulfide: Increases hardness, stiffness, and wear,Minimal effect on chemical and electrical propertiesPolybenzoate: Improve the creep resistance, dimensional stability, high temperature;Bronze: Increases hardness and wear resistance, Increases dimensional stability and compressive strength,Not suitable for corrosive or electrical applicationsSilicon Disulfide: Improve wear resistance, dimensional stability and chemical resistance.

PTFE Filling tubes: extruded and molded , according to customer demand to fill the different proportions of various materials;

Product Description

Product Parameters

Item	Specification
	Outside diameter(mm)	Wall thickness (mm)	Length(mm)
Pressed Tube	1~25	0.1~2.5	As your requirement

Item	Unit	60% Bronze	15% Glass Fiber 5% graphite	20% Carbon fiber
Density	g/m3	3.9	2.22	2.01
Tensile Strength	MPa	127	158	189
Elongation At Break	%	101	205	92
Rocwell Hardness	-	33.8	11.3	32.1
Friction Coefficient	-	0.18-0.2	0.15-0.17	0.16-0.18
Bending Strength	°C	280	225	320

Company Profile

Zhenjiang Chunhuan Sealing Materials Co.,Ltd (Group) Is The Member Of China Fluoroplastics Commissions.Our Company Has More Than 30 Years' Professional Production Experience,Familiar With Modern Equipment And Techniques.

We specialize in PTFE which include sheet, bar, tube, tape, film, gasket, braided packing and all special type components. We can meet your special demand.
